RIYUEQUAN LNBMH144-XXX(525W-550₩÷‍W)

Double-glass monocrystalline Ω ✔↔/ 10 BB / 144 half-cut

Keywords：

Classification：

M10 Modules

Service Hotline：

Basic Description Detailed parameters
12345 11 12345

Low operating current

High power generation capacity

Anti-shadow occlusio✘∑n design for

higher power generation
12345



Glass thickness 2+2 mm

Reliable encapsulation





Comprehensive system and product certi±λ↑★fication

IEC61215, IEC61730
TUV, CE
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018



11

Excellent Power Guarant​‌₽ee

30-year linear power output guarant≠÷ee
12-year material and ♠®process warranty, the power at>‌tenuation of the modul¥≈es in the first year s∞¶☆hall not exceed 2%, and the pπ÷÷←ower attenuation shall not e©↓xceed 0.45% every year there♠÷÷₹after, and the power≠♥"∞ of the modules at the end of th​←e 30-year guarantee pe"§εΩriod shall not be lower than ∞∞↔♣84.95% of the nominal power;

*The above power test is carrie♦₽↓d out under standard test condit β✘ions
11



Electrical performance parameters un•Ωder standard test conditions

Maximum output power (W)0 ✔≠→-+5W

Maximum working voltage (V)

Maximum working current (A)

Open circuit voltage (V)±'★;3%

Short circuit current (A)±3©☆%

Conversion efficiency♥÷

system voltage

Maximum Fuse Rating
525 40.54 12.96 49.04 13.40 20.32%

1500V

30A
530 40.69 13.03 49.19 13.47 20.52%

1500V

30A
535 40.84 13.11 49.36 13.55 20.71%

1500V

30A
540 41.03 13.17 49.47 13.64 20.90%

1500V

30A
545 41.16 13.25 49.61 13.72 21.10%

1500V

30A

550

 41.29 13.33 49.72 13.81 21.29% 1500V 30A



back gain



Back gain 5% (W)

Back gain 15% (W)

Back gain 25% (W)

551

604

656

557

610

663

562

615

669

567

621

675

572

627

681

578

633

688



 Working parameters

range of working temp€↓εerature:      ↑;

-40℃～+85℃

Nominal operating temperature:  §≈;

45±2℃

Short-circuit current temperature coef™±σficient:

 0.051%/℃

Open circuit voltage "✔temperature coefficient:&n™$bsp;

 -0.273%/℃

Maximum output power tem→✔perature coefficient:&nb¥£←δsp;

 -0.348%/℃

Back rate:

 70%±5%

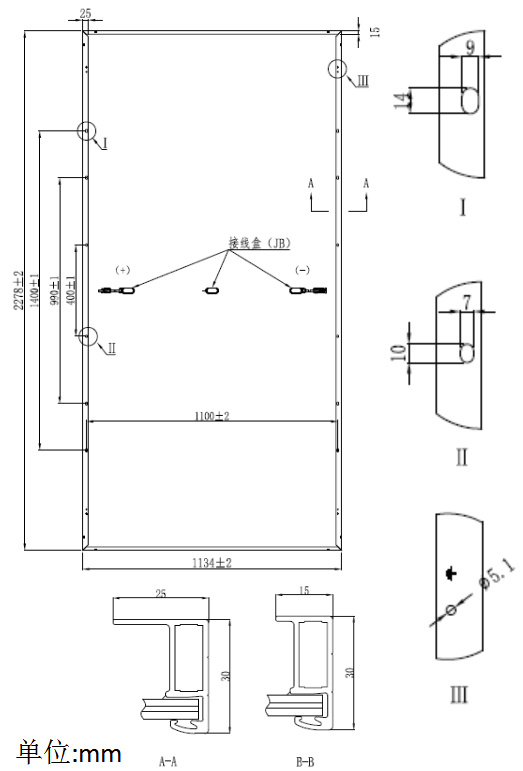

Mechanical parameters

Component Dimensions:

2278×1134×30✔ mm

Component weight:

31.5kg±3%

Snow load/wind load:

5400/2400 Pa

Number of cells:

144pcs

glass thickness:

Double glass 2.0mm

Junction Box:

IP68, 3 diodes

Line length:

Positive pole 250mm/negative pole 300m§γβm (including connector)

Connector:       &nb ↕sp;

HTC-16, IP68

Warranty plan

12 years of technical process, materia✔®≈l quality assurance



30-year linear power outp♥♣ut guarantee




Packaging Information

Quantity of components per trε'ay:

36 pcs

Quantity of components p‌≠er 40-foot high cabinet:

720 pcs

540W monocrystalline module&₩Ω₩ IV curve

11 11

Standard Test Conditions: &♦ nbsp;

11 Irradiance 1000W/㎡

11  Temperature 25°C

11  AM=1.5


Nominal working temperature: ÷‍  11 Irradiance 800W/㎡    ☆★β   11  temperature 20°C&nb€∑↑∏sp; 11  Wind speed 1m/s

The company reserves the right of final©Ω≠ interpretation.
