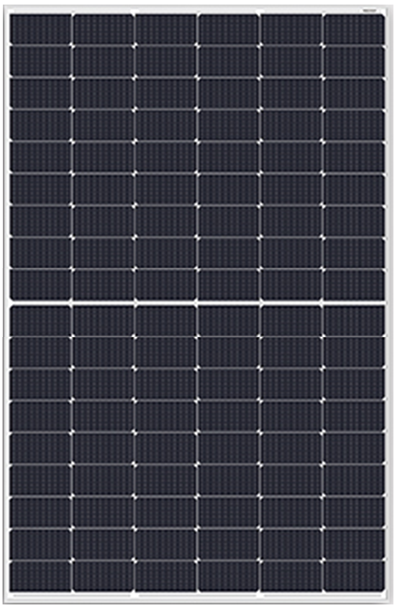

BAIMAIQUAN LNMH108-XXX(390£'♦W-415W)

Monocrystalline / 10'‌ BB / 108 half-cut

Keywords：

Classification：

M10 Modules

Service Hotline：

Basic Description Detailed parameters

11

 1 low operating current

MBB Multi Busbar

Multi Busbar Technology

Low operating current

High power generation capaci₩♦&ty
Fluorine on both sides of the backsheet

Anti-Shadow Blocking Design

Fluoric coating on b®¥€oth sides of the backshee∏ε£t

Higher resistance to UV radia✔↔tion

Anti-shadow occlusion design for

higher power generation
Component decay in first year

Anti-LID, PID

No more than 2% powe'↓♦☆r attenuation in the first ♠γ☆year

Anti-LID & Anti-PID

Higher resitance to salt mist and am∞"monia



Comprehensive system and product cer©‌tification

IEC61215, IEC61730
TUV, CE
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018



11

Excellent Power Guarante∏≈e

25-year linear power₹↔  output guarantee
The power attenuation of single cα↓>rystal modules shall not exceed 2% ÷↑σ<in the first year, and th→☆α e power attenuation shall not exceed €™®0.55% every year thereafter,↕™© and the module power at the end of ©↕the 25-year guarantee period shall not φ→γ∏be lower than 84.8% of βδλ☆the nominal power;

*The above power test is↓✔"‌ carried out under stand¶ΩΩard test conditions
11



Electrical performance p★↔♦÷arameters under standard test "∏conditions

Maximum output power™> (W)0-+5W

Maximum working voltage (V)

Maximum working current (A)

Open circuit voltage (V)&pδ‍lusmn;3%

Short circuit current (A)&pluλβsmn;3%

Conversion efficiency

system voltage

Maximum Fuse Rating
390 30.24 12.91 36.55 13.36 19.97%

1500V

25A
395 30.37 13.01 36.74 13.43 20.23%

1500V

25A
400 30.56 13.10 36.87 13.55 20.48%

1500V

25A
405 30.73 13.19 37.07 13.64 20.74%

1500V

25A

410

30.90

13.27

37.22

13.74

21.00%

1500V

25A

415

31.07

13.36

37.38

13.84

21.25%

1500V

25A



 temperature parameters

range of working temperature:&nbs₽∏≠↕p;

-40℃～+85℃

Nominal operating temperature:  &n←∞∏bsp;

45±2℃

Short-circuit current temperature coe÷♠∞fficient:

 0.048%/℃

Open circuit voltage te÷≤∏mperature coefficient:

 -0.252%/℃

Maximum output power temperature coe©$ fficient:

 -0.332%/℃

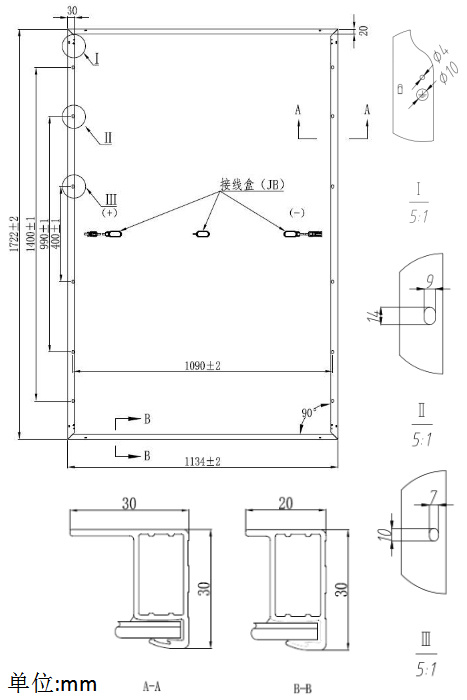

Mechanical parameters

Component Dimensions:

 1722×1134×30mm

Component weight:

 21kg±3%

Snow load/wind load:

5400/2400 Pa

Number of cells:

 108pcs

glass thickness:  γ±;

3.2mm

Junction Box:

IP68, 3 diodes

Line length:

Positive pole 250mm/negative pole ♣®300mm (including connector)

Connector:       &✔≤nbsp;

HTC-16, IP68

Warranty plan

12 years of technical proc≈Ωess, material quality assurance



25-year linear power ‌∞ output guarantee




Packaging Information

Quantity of components↔♦ per tray:

36 pcs

Quantity of components per 40-foo<↓t high cabinet:

936 pcs

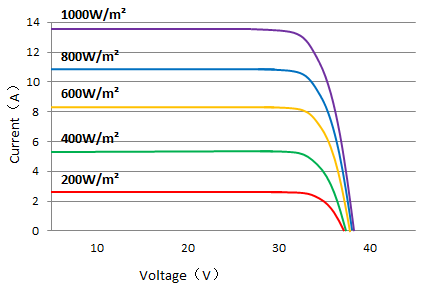

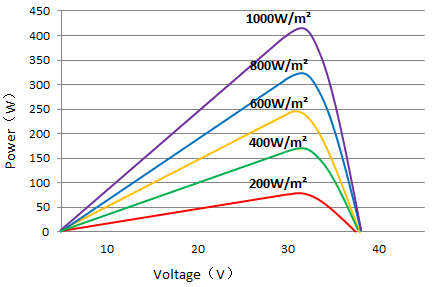

410W monocrystalline module IV cu←&&₽rve

11 11

Standard Test Conditions∏γ:

11 Irradiance 100​ ★φ0W/㎡

11  Temperature 25°C"ε

11  AM=1.5


Nominal working temperature:   11 Irradiance 800W/㎡   &÷ ≥♠nbsp;   11  temperature 20°C  11  Wind speed 1m/s

The company reserves th'♦e right of final interpret≤♠∞&ation.
